Food waste treatment system MEIKO BioMaster®

Servicing and technical data

Experience the machine

ADVANTAGES

  • No open buckets or trash cans of food waste to move around

  • No unpleasant odors

  • No flies, vermin or mold spores

  • Compact, stand-alone appliance requiring minimal space

  • Fully integrable

MODELS

for kitchen waste and leftovers

Whether you serve 100 or more than 10,000 covers per day, we have the right solution for your needs with the BioMaster® waste treatment system.

MEIKO BioMaster® 4 PLUS

The BioMaster® 4 PLUS comes on the same chassis as the BioMaster®4 HIGHLINE: 150 mm ground clearance, can be plinth-mounted, easy to clean, standard-compliant water supply, attaches to tables and hygiene stations, yet this appliance is in a class of its own. The right machine for use in medium to large commercial kitchens. Kitchen waste and leftovers can be processed in just 50 seconds. From breakfast to dinner, norm-compliant processing is guaranteed. A symbiosis between power and design.

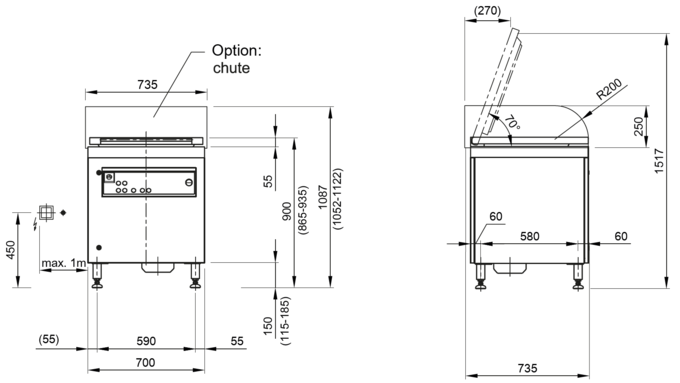

Measurements
Dimensions (W x Hmin x D)700 x 700 x 865 - 935 mm
Chassisentièrement en acier inoxydable 1.4301 / V2A
Chute volume40 l
Capacity≤ 1000 kg/h
Feed pump „BioPump®“1.1 kW, max. 80 l / min.
Maceratormoteur frein 3 kW, “Auto-Reverse“ kW
Biomass outlet connectionraccord vissé PE d-63
Cold water connectionfiletage extérieur 3/4"
Addition of process waterautomatique, quantité d'eau dosable
Electrical connectionPrise CEE, 400 V, 50 Hz, 4.5 kW, champ magnétique rotatif à droite, 16 A/disjoncteur de protection type C avec courant de déclenchement de 30 mA
Protection class of the machineIP X5
Noise emission≤ 70 dB
Leergewicht185 kg
Additional equipmentclé de déverrouillage, 3 seaux de collecte, pré-hacheur breveté, bords anti-éclaboussures
